Mach 3 CNC control software is a platform that turns most windows PCs into a CNC machine controller that manages the motions of motors and generators.

Through an importing process called LazyCam, Mach 3 CNC control software processes a CNC programming language called geometric code (G-code) that tells the CNC machine what type of action to perform.

The third version of the software, the Mach 3 is reviewed as the most user-friendly and reliable — from DIY projects to industrial machining.

The field of mechatronics aims to produce a design solution to make more intelligent and streamlined system processes for difficult or time-consuming tasks.

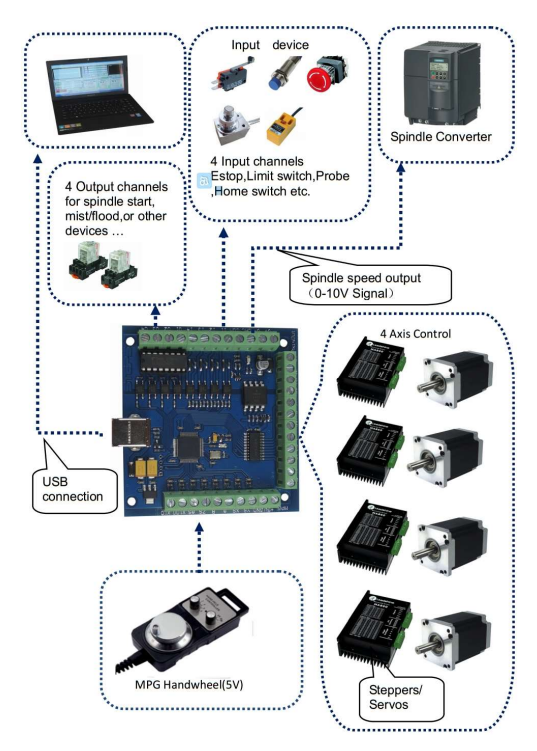

  1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives; Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;
  2. General-purpose opto-couplers isolation input: for connecting limit switches, emergency stop switch, auto tool zero, home switch, and etc.
  3. Support for connecting an electronic hand-wheel; Has 0-10V signal output , you can use mach3 software to control the spindle motor speed.
  4. General-purpose isolated relay drive output interface, can drive four relays for controlling spindle start, forward and reverse rotation, pumps, or other devices.
  5. On-board status LED, indicate connection status and operation.

Downloading
Download the installation package from www.machsupport.com. Use the right mouse button and Save Target as… to put the self-installing file on the Desktop or in a convenient folder. You should be logged in to Windows as an Administrator. When the file has downloaded, it can be run immediately by using the Open button on the download dialog window, or the download dialog window can be closed and the installation done later. When you want to do the installation, run the file you downloaded and saved. For example, if you saved the installation file on the Desktop, just double-click it. If you saved the file in a folder, run Windows Explorer (right click Start button), and double-click on the name of the downloaded file in the folder.

What Are Some Features of the Mach 3 CNC Control Software?

  • Allows Drawing exchange Format (DXF) files to import directly into PC
  • Bitmap image (BMP) and JPEG, a format for compressing image files, can quickly transfer into code
  • Can control spindle speed for more accurate cuts
  • Full video display and touch screen capabilities
  • Fully customizable user interface
  • Option to extend the abilities of Mach 3 through “wizards” or mini-programs, allowing users to perform functions without a pre-written G-code file
  • Remotely turn equipment on and off by controlling multiple relays at a time
  • Users can write miscellaneous instructions with M-codes and Macros through Microsoft Visual Basic Scripting Edition, or VBScript, and
  • With a 6-axis input-output operation — there is no need for a high-priced controller panel

What Machines Can Mach 3 Control?

The Mach 3 controls:

  • Gear cutters
  • Lasers
  • Lathes
  • Mills
  • Plasmas, and
  • Routers

Mach3 is quite old now and has not had any updates for a few years now. The reason for this is that Windows is not a Real-Time Operating System and there can be issues with CPU timing.  When other tasks cause interrupts it can mess with the steps pluses need to run the cut.  It gets more pronounced when trying to run the system faster.

If you do use Mach3 then don’t run anything else on the computer that may interrupt it.  Mine wasn’t connected to the internet and had no anti-virus installed.  I also disabled a lot of unnecessary services and was been very reliable.

OPERATING SYSTEM

It's available for both 32 and 64-bit Windows versions.


If you are planning to do machine control utilizing the parallel port of your computer, you can only use the 32-bit versions of Windows 2000, Windows XP, Windows Vista, or Windows 7.

For controlling your CNC router with an external controller, you can use both 32 and 64-bit versions of Windows OS. In such a case, you can use Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8, or Windows 10.

Mach3 requires a minimum of 1GHz processor, 512MB RAM, and 32MB VRAM. For running large files especially 3D files, you'll need to have a dedicated VRAM of 512MB or higher. Operating System
You need to have a PC with Windows OS to run Mach3 software.

Help

Mach3 software has a dedicated "help" button from which you can access video and document resources about different software tools and their functions.
Art soft provides a detailed user manual and training videos to give you a clear overview that covers every aspect of the software.

Community

Being an active participant in the CNC market from the year 2001, Art soft has a large and trusted community.
Mach3 is used by a lot of people and has an active customer engagement happening on Art soft's official forum and Yahoo groups. Users are also active on Reddit, Facebook, and YouTube.
CONCLUSION

Mach3 software has been around for a long time in the world of CNC control and is still very popular.


It is used by a lot of hobbyists and business owners as it perfectly does what it's designed to do.

Another great reason to choose Mach 3 is the large number of users for the software, which results in great community support when you need it.

Mach3 is still widely used by a lot of people even though Art soft has released Mach4.
